46" X 3" MPT (.33) FIELD FORM MINERAL WOOL

JM MinWool-1200® Field Formed Mineral Wool Pipe Cover, Iron Pipe Size: 46 in IPS, Insulation Thickness: 3 in, Material: Mineral Wool, Application: For Commercial/Industrial Applications, Temperature Rating: 1200 deg F, Flame Spread Index: 25, Smoke Developed Index: <50, Thermal Conductivity: 0.23 to 0.73 Btu-in/hr-sq-ft-deg F, Construction: 1-Layer

Application   : For Commercial/Industrial Applications

Construction   : 1-Layer

Flame Spread Index   : 25

Insulation Thickness   : 3 in

Iron Pipe Size   : 46 in IPS

Item Name   : Mineral Wool Pipe Cover

Material   : Mineral Wool

Smoke Developed Index   : <50

Sub Brand   : MinWool-1200

Temperature Rating   : 1200 deg F

Thermal Conductivity   : 0.23 to 0.73 Btu-in/hr-sq-ft-deg F

Type/Style   : Field Formed

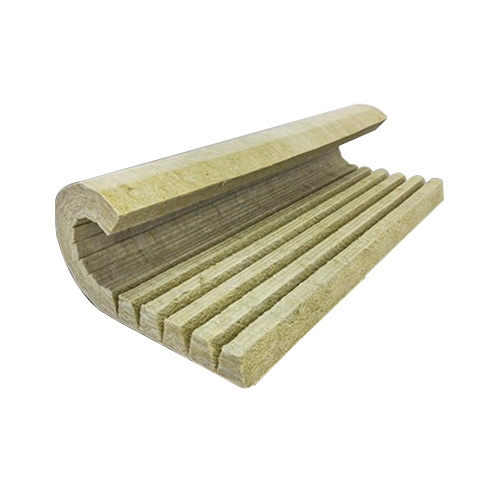

MinWool-1200 field formed mineral wool pipe insulation is a factory V grooved mineral wool board with a unique pressure sensitive contact adhesive in the grooves. It ships in flat 4 mil plastic and is easily formed on the job site. All mineral wool insulation is made from basalt, a volcanic rock and bound with a thermosetting resin. Advanced manufacturing technology ensures that our mineral wool products have consistent product quality, with high fiber density and low shot content, for excellent performance in thermal control and fire resistance applications. Minwool-1200 field formed is manufactured to specific pipe sizes with a variety of facing options.

• Ships flat - packaged flat in 4 mil plastic for some weather protection, freight efficiency and storage space utilization
• Thermal performance - good thermal conductivity values help maximize control of heat loss, contributing to reduced operating costs and greater energy savings
• Light weight, low dust, protected outer surface - easy-to-handle and fabricate, field formed pipe insulation is easy to cut with a knife
• Clean handling properties and factory applied facers help reduce skin irritation and minimize job cleanup time and expense
• Mold resistant - field formed pipe insulation does not support the growth of fungi

Standards/Certifications: ASTM C1335|ASTM C1338|ASTM C447|ASTM C547|ASTM C585|ASTM C692|ASTM C795|ASTM C871|ASTM E84|CAN/ULC S102 Type III|UL 723

• Catalog/Catalog Cut Sheet https://www.distributioninternational.com//ASSETS/DOCUMENTS/ITEMS/EN/MWPC02520FFM_CAT.pdf
• SDS https://www.distributioninternational.com//ASSETS/DOCUMENTS/ITEMS/EN/MWBD81024I_SDS.pdf
• Specification Sheet https://www.distributioninternational.com//ASSETS/DOCUMENTS/ITEMS/EN/MWPC02520FFM_SS.pdf
